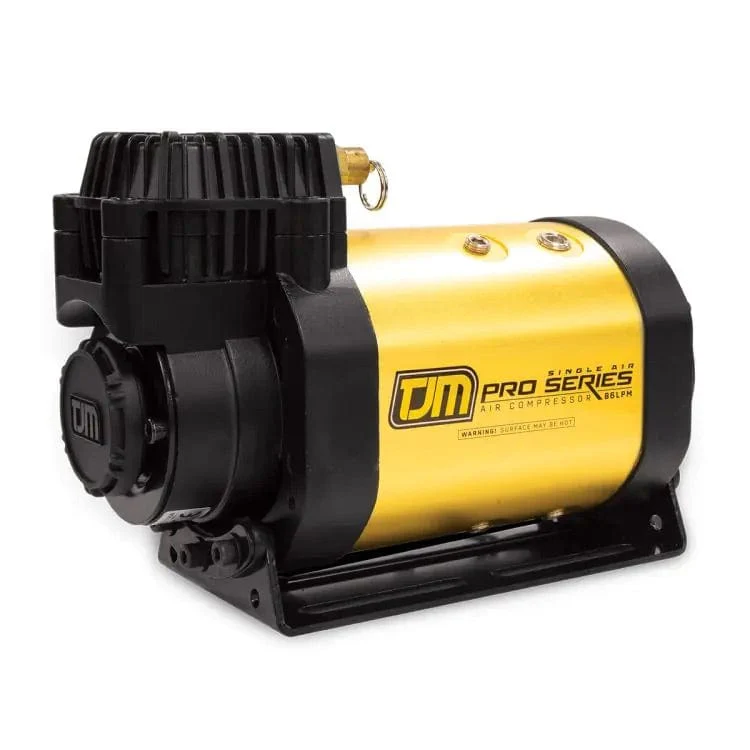

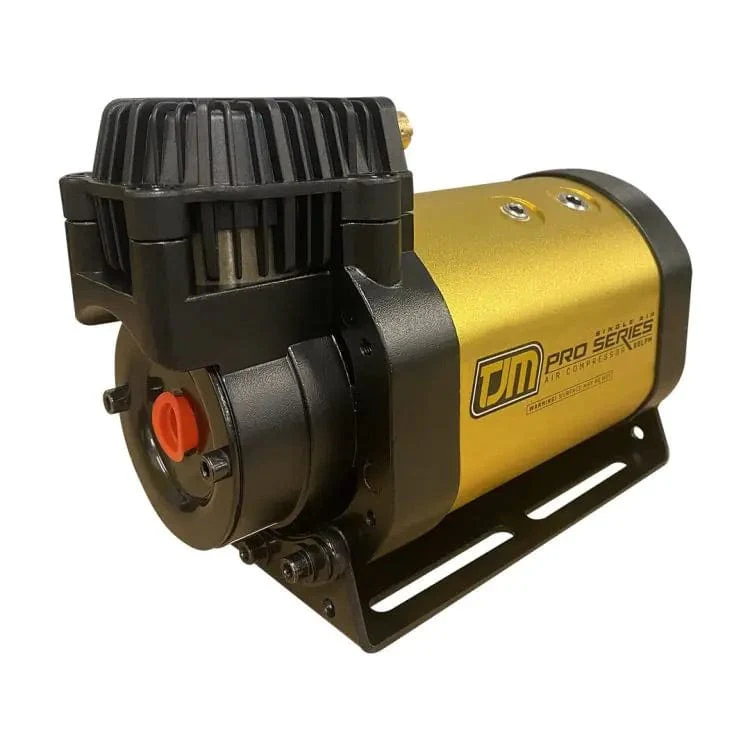

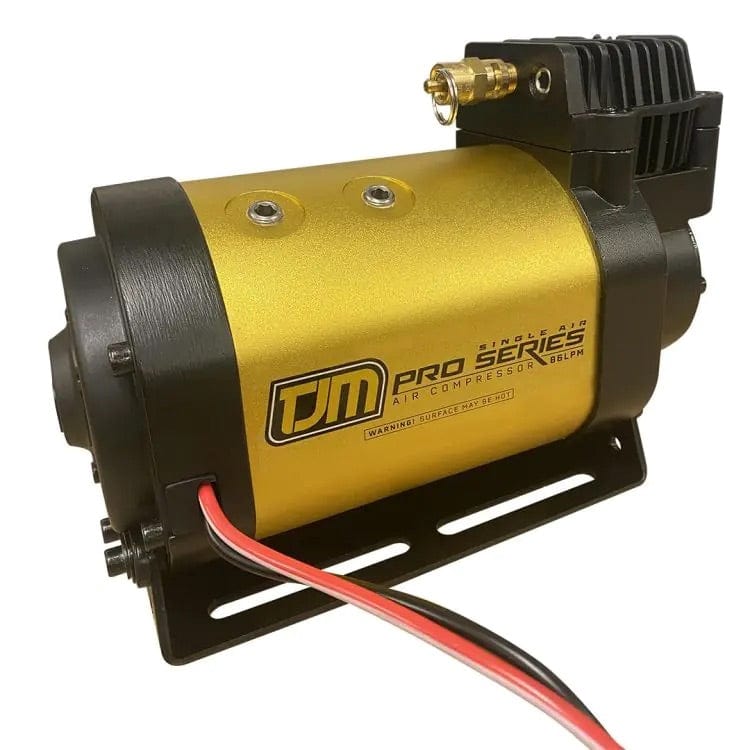

TJM Pro Series Single Air Compressor
Stay ahead of the pack with a TJM Pro Series Single Air Compressor. It delivers an imposing 86 litres-per-minute for speedy inflation, which is made possible thanks to its powerful internal componentry and advanced convection cooling system (patent no. 2019202008 ). Each TJM Pro Series Single Air Compressor’s exterior is constructed from a careful combination of cast and extruded aluminium. This seamless anodised exterior provides superior protection for its oversized internals, hard-anodised cylinder bore and Teflon-impregnated piston seal. The Pro Series Single features five unique mounting angles for easy access in your 4x4 – whether that’s in your engine bay, vehicle cab or drawer system – while it includes multiple tyre inflation points, auxiliary ports and a Pressure Cut-Out switch for exceptional utility. TJM Pro Series Airline Kit (013COMPAKNAA) not included.
| Flow rate: | 86LPM |
| Tyre inflation: | 10-40PSI (285/75/R16) |
| External ports: | 6 x 1/8” BSPT, 2 x ¼” BSPT, safety relief valve port 1 x 1/8” NPT |
| Air tank: | 0.23L with integrated air tank extrusion |
| Independent power output: | No |
| Mounting: | 5-angle mounting |
| Bore size: | 48mm |
| Fuse rating: | 40A (maxi-blade) |
| Cooling system (patent pending): | Convection cooling with internal fan |
| Supply voltage: | 12V |
| Duty cycle: | 100% @ 80PSI (23°C) |
| Air filter: | 2- stage |
| Pressure cut-out switch: | Yes. On: 90PSI Off: 120PSI |
| Thermal cut-out switch: | 105°C |
| Over-pressure safety valve: | Yes, factory set 155PSI |
| Warranty: | 3 years |
| Weight | 6.000000 kg |
| Length | 340 mm |
| Width | 460 mm |
| Height | 510 mm |
Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.
